BEAMAGE-M2
2D CAD file (PDF)
- 9769A
- English
BEAMAGE-M2
P/N 203605Automated M-squared measurement system. Comes with BEAMAGE-4M, 5 lenses, 3 ND filters, and 2 external beam-steering mirrors.
Product family key features
NEW: Automatic scan
With the “RUN M2 SETUP” button, the software automatically defines new parameters for a more precise M2 measurement. The “ISO SCAN” data set complies with the ISO-11146 M2 measurement standard, being spread between -3ZR and +3ZR.
The automatic settings are updated after each calculation, considering the values of Z0 and ZR from the latest measurement.
Large Apertures
The only M2 system on the market equipped with a complete set of 50-mm optics. Also, the sensor is 11.3 x 11.3 mm.
Simple Alignment
Two beam-steering mirrors are included for quick and easy alignment of your laser into the system. The internal mirrors are factory-aligned and the pre-set height also simplifies the alignment.
Compact
The low-profile ingenious mechanics make it easy to fit the device on any optical table.
ISO Compliant
The calculations are fully compliant with the ISO 11146 and 13694 standards.
Fast Acquisition
Make a complete, ISO-compliant measurement in only 20 seconds with the ROI feature, and in less than a minute with full-frame acquisition.
Flexible & Intuitive Software
In the easy-to-navigate software, both automatic and manual settings are available, so data points can be added or removed even after an automatic scan is completed.
Included
-
MON-USB
USB cable for : P-LINK, S-LINK-2, M-LINK, Mach series, T-Rad and QUAD-4Track.
-
PEL-#
Pelican carrying case. Various sizes available. Contact us to order.
-
BEAMAGE-4M
Beam profiling camera. 4.2 MPixel high-resolution CMOS sensor, ISO-compliant measurements.
-
M2-48V
Power supply for BEAMAGE-M2, 48 V.
-
Alignment kit
SM1-threaded alignment tube with fluorescent cards for BEAMAGE-M2 alignment.
-
M2-LENSES
A set of 5 plano-convex lenses (f = 500, 400, 300, 250 and 200 mm).
-
M2-TOOLS
Screwdriver and hexagonal keys for BEAMAGE-M2.
Measurement capabilities
-
Spectral range
350 - 1100 nm -
Minimum measurable beam
55 μm -
Included filter
3 flip-mount attenuators for 8 levels of attenuation, from none to ND3.5 -
Sensor technology
BEAMAGE-4M included -
Effective aperture
Ø 48 mm optics, 11.3 x 11.3 mm sensor -
Beam diameter range
55 μm to 11.3 mm, at the sensor -
Mechanical travel range
200 mm -
Effective optical path range
400 mm -
Lens focal length
5 AR-coated lenses included: 200 mm, 250 mm, 300 mm, 400 mm and 500 mm -
Typical M2 accuracy
±5%, depending on the beam quality and optical configuration -
Typical M2 repeatability
±2%, depending on the beam quality and optical configuration -
Applicable light sources
CW and pulsed -
Typical measurement time
45 sec with full-frame acquisition -
Beam diameter definitions
D4σ (ISO compliant)
1/e2 along crosshairs (13.5%)
FWHM along crosshairs (50%)
Custom (%) -
Beam quality definitions
Laser beam quality: M2 (ISO-compliant)
Beam Propagation factor: BPP
Width at waist
Waist location and offset
Divergence angle
Rayleigh length
Astigmatism
Physical characteristics
-
Dimensions
172H x 193W x 602D mm -
Weight
6.6 kg
CA$20,644.00*
-
B3-USB
Replacement USB3.0 cable for the Beamage cameras.
USB3.0-HUB
USB 3.0 hub with 4 ports and 5 VDC input.
-
USB drivers installer
USB drivers
Use this file to install USB drivers for these products: MAESTRO, INTEGRA, U-LINK, P-LINK, M-LINK, S-LINK, BLU, PRONTO, HP, MACH6, BEAMAGE
- 2.00.02
- English
BEAMAGE
Software, drivers and firmware
Software, drivers and firmware for BEAMAGE and BEAMAGE-M2.
- 1.08.00
- English
INTUITIVE SOFTWARE INTERFACE
ISO COMPLIANCE MADE SIMPLE
With the “RUN M2 SETUP” button, the software automatically defines new parameters for a more precise M2 measurement. The “ISO SCAN” data set complies with the ISO-11146 M2 measurement standard, being spread between -3ZR and +3ZR.
The automatic settings are updated after each calculation, considering the values of Z0 and ZR from the latest measurement.

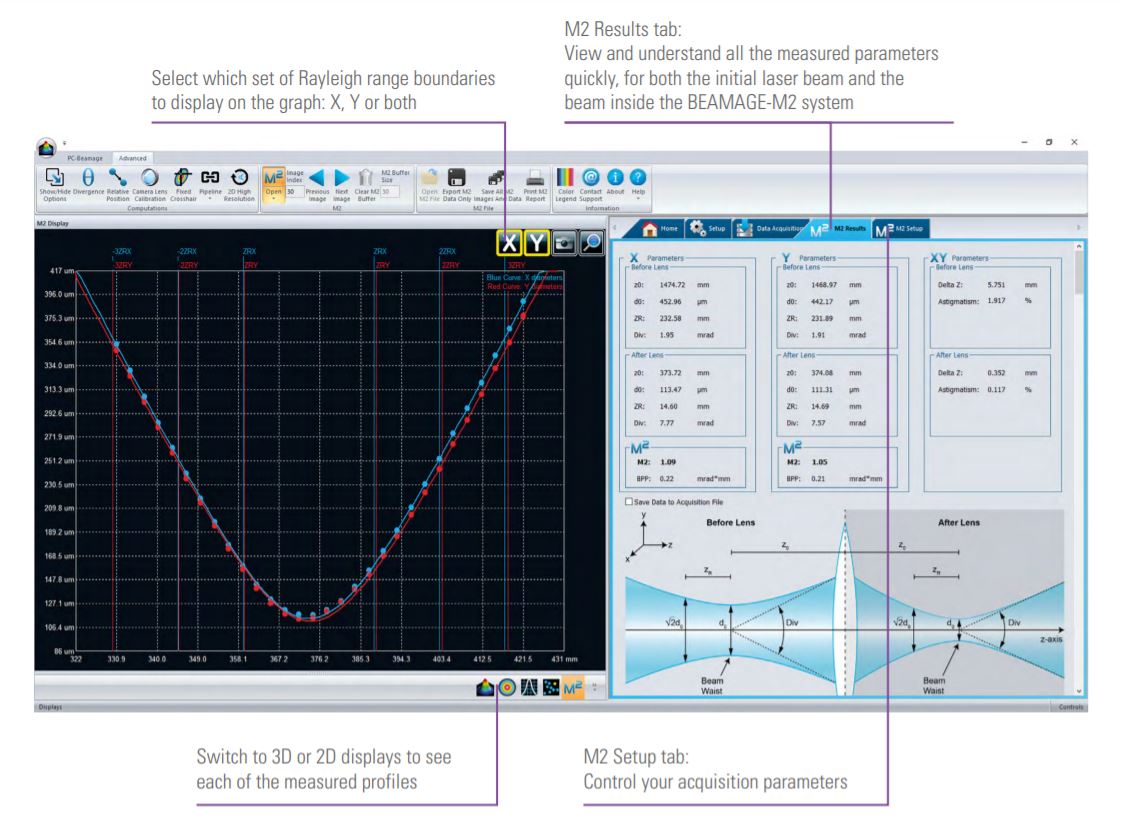

By default, the results graph always shows the calculated positions of the first three Rayleigh distances on each side of the waist.
FULL CONTROL ON YOUR DATA

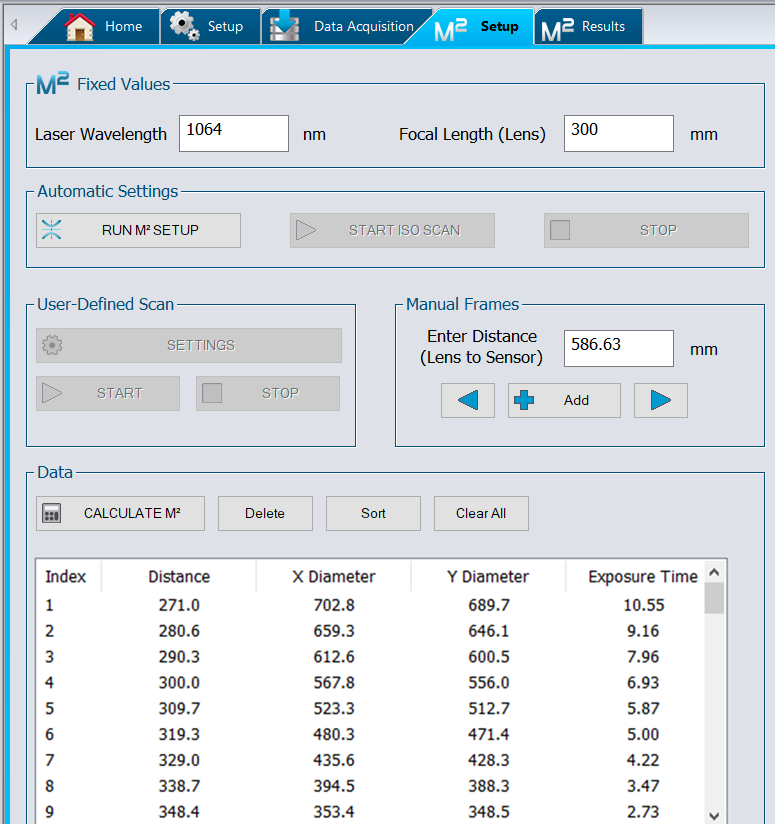

During an M2 scan, each of the measured profiles is saved and the flexible software gives you complete control on your acquired data.
- View each acquired profile in 2D display or 3D display
- Add measurement points to a data set at the position of your choice with the “ADD” button.
- Remove unwanted profiles from your data set & recalculate the measurements.

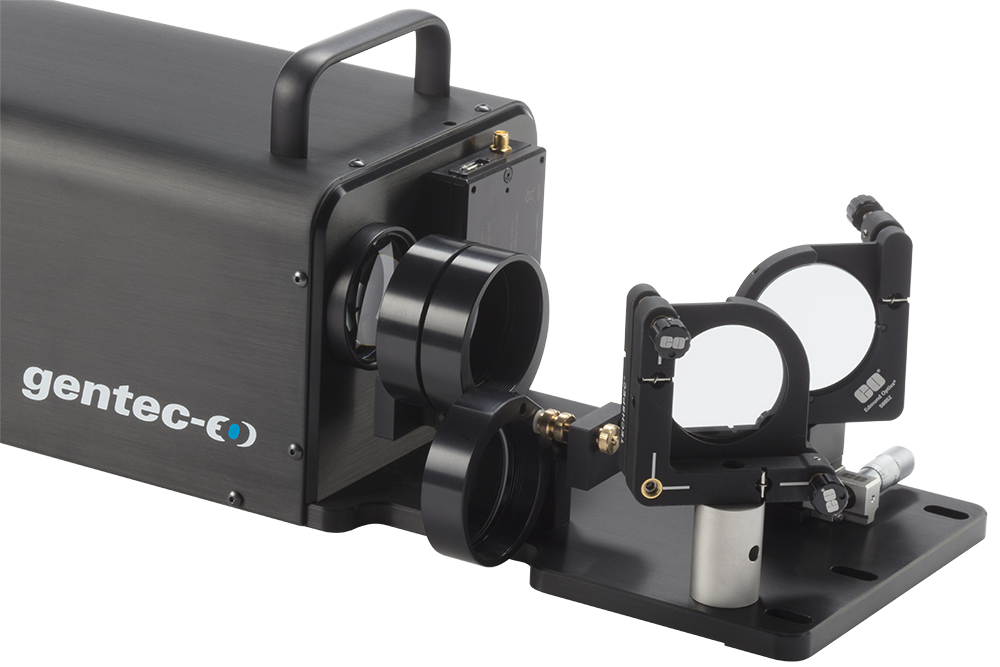

FAST ATTENUATION
Add or remove attenuation with the flick of a finger. The software adjusts the exposure time at each frame during an acquisition, and advises the user on the required attenuation.
