HP100A-50KW-GD
High power detector for laser power measurement up to 50 000 W.
-
- QBH
- 60 mm Ø
- 100 mm Ø
- 250 mm Ø
- 125 x 125 mm
- 280 x 280 mm
- 500 x 500 mm
-
- HE - Broadband, high power
- HD - Broadband, high power
- GD - High power density, large cone
- GD - High power density, small cone
-
- Standard (without TUBE)
- Low (with TUBE)
-
- Imperial
- Metric
-
- Standard (DB15) + USB
- BLU (DB15 + wireless)
Traceable calibration:
Product family key features
CUSTOM-BUILT
Contact us with your requirements for a version tailored to your needs
The Highest Power Handling
Custom models handle up to 120 000 W of continuous power. Higher powers are available upon request.
Stable Reading
Less sensitive to variations in water cooling temperature than any other high-power water-cooled meter on the market.
Infinite Customization Capabilities
- Choose your size
- Choose your maximum power
- We will customize one just for you!
Compact and Light Weight
Lighter and more compact than any other high-power detector on the market, thanks to our unique design.
Available with YAG and CO2 Calibration
All HP models can be calibrated at YAG and CO2 wavelengths with a calibration uncertainty of +/- 5%.
Direct USB Connection to a PC
Each head comes with both a DB-15 connector (for use with a Gentec-EO monitor) and a USB2.0 output for direct connection to a PC. Other connectors are available upon request.
Compatible displays & PC interfaces
Included
-
Calibration
Calibration certificate
-
CASE
Transport case
-
PWC
Personal wavelength correctionTM Certificate
-
COVER
Protective cover for optical surfaces
Measurement capabilities
-
Maximum average power (continuous)
50000 W -
Minimum average power1
1000 W -
Noise equivalent power2
200 W -
Spectral range
0.8 - 12 μm -
Typical rise time
80 sec -
Power calibration uncertainty
±5 % -
Back reflections
~ 2.5 % -
Linearity with power
±2 % -
Linearity vs beam diameter
±2 % -
Linearity vs beam position
±1.5 % -
Calibrated spectral range
1030 - 1080 nm -
- 1. For lower powers, call your Gentec-EO representative.
- 2. Nominal value. Actual value depends on electrical noise in the measurement system.
Water requirements
-
Required cooling flow1
(18 - 25) LPM < ±1 LPM/min -
Temperature range
15 – 25 °C -
Rate of temperature change
< ±1°C/min -
Maximum water pressure
551 kPa (80 psi) -
- 1. Contact Gentec-EO for clean deionized water cooling module option.
Damage thresholds
-
Maximum average power density1
25 kW/cm² -
- 1. At 1.03-1.08 µm, 10 kW CW. Refer to user manual for damage threshold at other powers.
Controller and GUI specifications
-
Data display
Real time, scope, needle, averaging, histogram and statistics -
Analog output1
0-2 Volts -
Serial commands via
USB -
External power supply2
Through USB or Gentec-EO displays & PC interfaces -
Display type
None -
- 1. 12 V maximum output signal available upon request.
- 2. A USB power adaptor will be necessary if the HP is used with a DB-15 extension cable.
Physical characteristics
-
Cooling
Water -
Aperture diameter
100 mm -
Absorber
GD -
Dimensions
305H x 324W x 197D mm -
Weight
60 kg
-
-
How calibration works
Technical note
- 2025
- English
Laser applications in the automotive industry demand peak performance of laser measurement instruments
Technical note
- 202207
- English
Linearity with power of Gentec-EO's thermal laser power detectors
Technical note
- 202206A
- English
Measuring high powers with low power detectors
Technical note
- 202188
- English
Recalibration options when using an extension cable
Technical note
- 202176
- English
Understanding the spectral characteristics of your detectors
Technical note
- 202202
- English
Power detectors - overview
Comparison table
- 2025
- English
Understanding your calibration certificate
Technical note
- 202184B
- English
Calibration: For measurements you can count on
Technical note
- English
-
PC-Gentec-EO
Software
Software for BLU, HP, INTEGRA, MAESTRO, U-LINK and P-LINK series. Don't forget to download and install the USB Drivers.
- 2.01.20
- English
HP
LabVIEW VI examples
LabVIEW VI examples for 8.0+
- 1.02.00
- English
USB drivers installer
USB drivers
Use this file to install USB drivers for these products: MAESTRO, INTEGRA, U-LINK, P-LINK, M-LINK, S-LINK, BLU, PRONTO, HP
- 2.00.02
- English

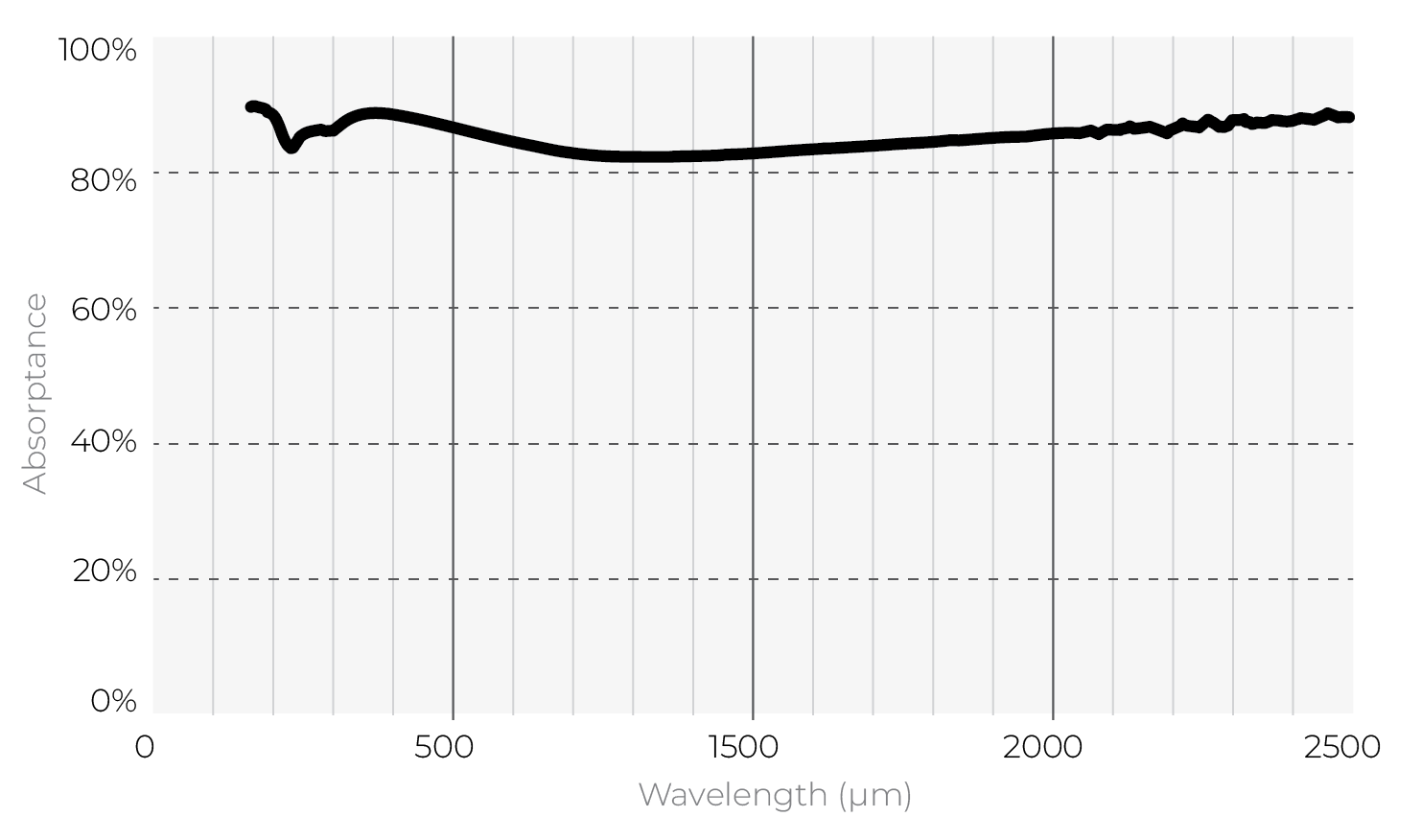

Gold cone absorber: Measure high-power lasers with low back reflections
The most remarkable feature of the GD absorber is that it has the highest damage thresholds for the average power density of the HP series, making it an ideal choice for small, high-power beams. It also features lower back reflections than our standard H absorber.
Customers enjoy:
- Safer work environment when working with very high-power lasers
- Kilowatt-level power measurement
- Highest average power density damage threshold
- Low risk of damaging the equipment with your laser
Use it with our included PC-Gentec-EO software
Read your measurements directly on your PC thanks to our free proprietary software PC-Gentec-EO. The software supports the following product series: P-LINK, HP, INTEGRA, U-LINK, and MAESTRO.
Enjoy:
- Practical displays: real-time, scope, needle, averaging, histogram, and statistics
- Useful features such as data logging and correction factors
- Many statistics available: current value, average value, maximum value, minimum value, RMS stability, PTP stability, repetition rate, average power, and STD deviation
Faster measurement with XNR AnticipationTM
Measure laser power up to 10x faster (model-dependant) with XNR AnticipationTM. Our proprietary algorithm looks at the rate at which the signal increases or decreases and combines this with calibration data to predict the result. The measurement is therefore calculated and displayed faster than the natural response of the detector.
Why does it matter?
- Save several seconds to tens of seconds for each measurement
- Shorter operation interruption
- Faster laser output diagnostics
- Increased productivity
- No compromise on measurement accuracy
NIST-TRACEABLE CALIBRATION INCLUDED
Traceable calibration provides the ability to trace the readings of laser output measurements to known international measurement standards determined by the National Institute of Standards and Technology (NIST). This ensures that the measurements taken by the instruments are reliable and accurate.
Benefits include:
- Make valid comparisons of measurements taken by other instruments inside and outside your organization and over time
- Comply with regulations or conform to industry standards
- Avoid costly measurement mistakes in your operations
- Improve customer confidence in your laser systems
- Ensure laboratory experiment validity
- Demonstrate measurement accuracy easily with the calibration certificate we provide
