PRONTO-3K, PRONTO-6K, PRONTO-10K
2D CAD file (PDF)
- 9607
- English
PRONTO-6K
P/N 203469Portable laser power meter for up to 6000 W.
-
- 19 mm Ø
- 55 mm Ø
- 10 x 10 mm
-
- H - Standard (up to 500 W)
- H - Standard (up to 3 kW)
- H - Standard (up to 6 kW)
- H - Standard (up to 10 kW)
- H - Standard (up to 250 W)
- Silicon (up to 800 mW)
- W - Very high power density
-
- Power
- Energy
- Power and Energy
Traceable calibration:

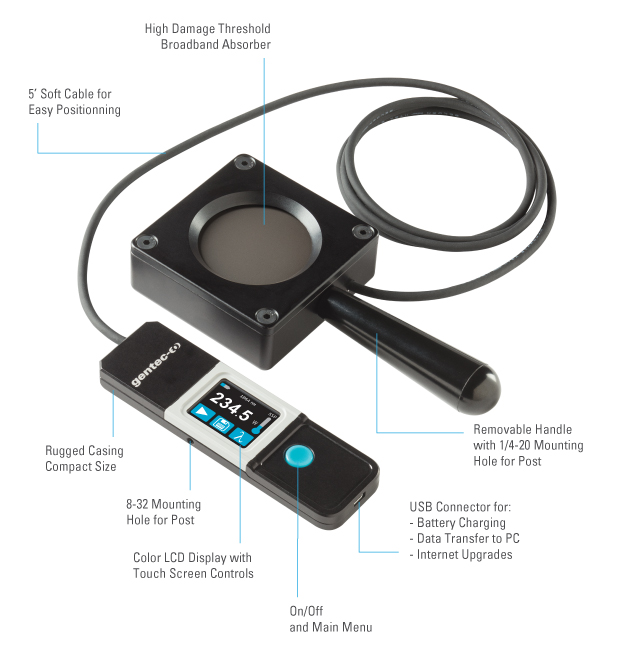

Product family key features
The PRONTO series for high power replaces the FLASH series that is now discontinued. The PRONTO models offer the same laser measurement capabilities, but with new and improved electronics that allow for data logging, more calibration points and USB connection for data transfer and charging the battery.
Wide Power Range
Very low noise level = wide power range with just one device
No-Wait Measurements
5 seconds measurements allow for very short cooling time (all models except PRONTO-3K)
Easy Operation
Color touch screen display
Large Aperture
55 mm aperture to accommodate large beams
Rugged
- All-metal body
- High damage thresholds
Advanced Features
Data logging and data transfer to PC
Compatible stand
Included
-
MAE-USB
USB cable for MAESTRO, U-LINK (USB), and PRONTO.
-
Calibration
Calibration certificate
-
CASE
Transport case
-
PWC
Personal wavelength correctionTM Certificate
Measurement capabilities
-
Maximum average power
6000 W -
Minimum average power
20 W -
Noise equivalent power
20 W -
Spectral range1
0.193 - 20 μm -
Power calibration uncertainty
±5 % -
Exposure time
5 s -
- 1. For the calibrated spectral range, see the user manual.
Continuous power mode
-
Response time
5 s
Damage thresholds
-
Maximum average power density1
8 kW/cm² -
Maximum allowable casing temperature
75 °C -
- 1. At 1064 nm, 3000 W CW. May vary with wavelength and average power.
Controller and GUI specifications
-
Battery type
Rechargeable Li-ion -
Battery life
17 hours or 4,200 measurements (with brightness set at 25%) -
Display resolution
4 digits -
Display size
28.0 x 35.0 mm (128 x 160 pixels) -
Display type
Touch Screen Color LCD -
Backlight
Adjustable -
Internet upgrades via
USB -
Data storage
50,000 pts -
Battery recharge via
USB
Physical characteristics
-
Aperture diameter
55 mm -
Absorber
H -
Dimensions
88W x 88L x 36D mm -
Weight
1.52 kg -
Mounting holes
1 x 8-32, 2 x 1/4-20
CA$1,891.00*
-
STAND-S-443
Stand, 4 x 4in base, 3in cylinder, steel post, 8-32 & ¼-20.
MAE-USB
USB cable for MAESTRO, U-LINK (USB), and PRONTO.
PEL-#
Pelican carrying case. Various sizes available. Contact us to order.
-
How calibration works
Technical note
- 2024
- English
Understanding the spectral characteristics of your detectors
Technical note
- English
Power detectors - overview
Comparison table
- 2024
- English
Understanding your calibration certificate
Technical note
- English
Calibration: For measurements you can count on
Technical note
- English
Versatile absorber suitable for most applications
Our H absorber offers a spectral response that is both broadband and spectrally flat, making this power detector a versatile solution that can cover most laser power measurement needs. Our proprietary manufacturing method also gives this absorber good damage thresholds, for both average power density and energy density. It has a high absorption capacity and, therefore, generates a relatively low percentage of back reflection.
Customers enjoy:
- Useful for measuring a wide range of lasers
- Low risk of damaging the equipment
- Allows fast rise time
Leverage serial commands
Use our serial commands to communicate directly with the meter without using Gentec-EO's software. You can do so using a terminal emulator software, like PuTTY, or you can just integrate them directly into your own software. All essential functions of the meter are covered by a command. Refer to the user manual of the meter for the list of all commands available.
Benefits:
- Build your own software
- Suit your unique laser application requirements
- Automate your measurements
NIST-TRACEABLE CALIBRATION INCLUDED
Traceable calibration provides the ability to trace the readings of laser output measurements to known international measurement standards determined by the National Institute of Standards and Technology (NIST). This ensures that the measurements taken by the instruments are reliable and accurate.
Benefits include:
- Make valid comparisons of measurements taken by other instruments inside and outside your organization and over time
- Comply with regulations or conform to industry standards
- Avoid costly measurement mistakes in your operations
- Improve customer confidence in your laser systems
- Ensure laboratory experiment validity
- Demonstrate measurement accuracy easily with the calibration certificate we provide
