PE5B-Ge-D0

P/N 202020

Photodiode detector for laser energy measurement up to 2.4 nJ.

    • 3 mm Ø
    • 5 mm Ø
    • 10 mm Ø
    • Germanium
    • InGaAs
    • UV-Silicon
    • None
    • Standard (DB15)
    • INTEGRA (USB)
    • INTEGRA (RS-232)
    • INTEGRA (USB with external trigger)
    • BLU (wireless)
PE5B-Ge-D0 PE5B-Ge-D0 PE5B-Ge-D0 PE5B-Ge-D0 PE5B-Ge-D0 PE5B-Ge-D0 PE5B-Ge-D0 PE5B-Ge-D0 PE5B-Ge-D0 PE5B-Ge-D0 PE5B-Ge-D0 PE5B-Ge-D0 PE5B-Ge-D0 PE5B-Ge-D0 PE5B-Ge-D0 PE5B-Ge-D0 PE5B-Ge-D0 PE5B-Ge-D0

Traceable calibration:

Logo nist

Available with

Logo Integra

Product family key features

Very low noise level

Take measurements with a noise level as low as 8 fJ (model PE3B-Si only) with the M-LINK, MAESTRO and S-LINK monitors.

3 sensors available

  • PE-B-SI family: 3 and 10 mm Ø silicon sensors for 0.21 to 1.08 µm
  • PE5B-GE: 5 mm Ø, germanium sensor for 0.8 to 1.65 µm
  • PE3B-IN: 3 mm Ø, InGaAs sensor for 0.9 to 1.7 µm

Smart interface

Containing all the calibration data

Compatible stand

Compatible displays & PC interfaces

  • MAESTRO MAESTRO

    Touchscreen display device for power & energy measurement. Single-channel, multiple outputs (USB, Ethernet, analog).

  • U-LINK (USB) U-LINK (USB)

    PC interface for power & energy measurement. Single-channel, USB output.

  • U-LINK (RS-232) U-LINK (RS-232)

    PC interface for power & energy measurement. Single-channel, RS-232 output.

  • INTEGRA INTEGRA

    Embedded PC interface for power & energy measurement. Can only be purchased as a detector output option.

  • S-LINK-1 (Ethernet) S-LINK-1 (Ethernet)

    PC interface for power & energy measurement. Single-channel, USB & Ethernet output.

  • S-LINK-2 (Ethernet) S-LINK-2 (Ethernet)

    PC interface for power & energy measurement. Dual-channel, USB & Ethernet output.

  • M-LINK M-LINK

    PC interface for power & energy measurement. Single-channel, USB output.

  • S-LINK-1 S-LINK-1

    PC interface for power & energy measurement. Single-channel, USB output.

  • S-LINK-2 S-LINK-2

    PC interface for power & energy measurement. Dual-channel, USB output.

  • APM (D) APM (D)

    Analog power module, to interface -B heads with oscilloscopes and lock-in amplifiers.

Included

  • Calibration Calibration

    Calibration certificate

  • PWC PWC

    Personal wavelength correctionTM Certificate

  • COVER

    Protective cover for optical surfaces

Measurement capabilities

  • Spectral range1

    800 - 1650 nm

  • Typical rise time

    25 µs

  • Maximum repetition frequency

    1000 Hz

  • Maximum measurable energy2

    2.4 nJ

  • Noise equivalent energy3

    1 pJ

  • Maximum pulse width

    10 μs

  • Energy calibration uncertainty

    ±5.0 % (800 - 1049 nm)
    ±3.5 % (1050 - 1559 nm)
    ±7.0 % (1560 - 1629 nm)
    ±10 % (1630 - 1650 nm)
    • 1. This detector is NIST-traceable at the calibration wavelength of 1310 nm. Typical values are used at other wavelengths.

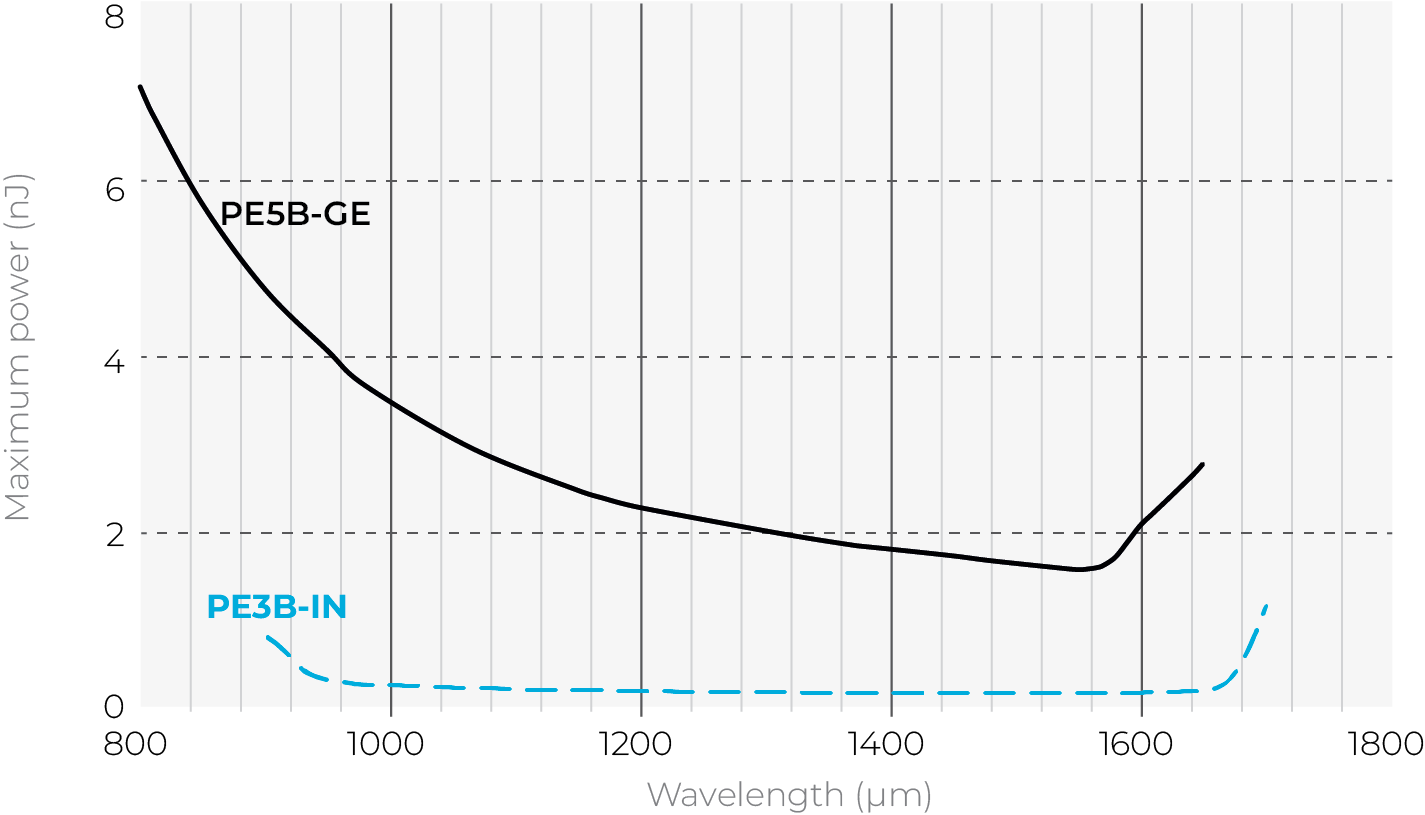

    • 2. At 1310 nm. See curves for maximum power at other wavelengths.
    • 3. Nominal value. Actual value depends on environmental electromagnetic interference and wavelength.

Damage thresholds

  • Maximum average power density

    320 mW/cm²

  • Maximum energy density

    5 µJ/cm²

  • Maximum power

    7.1 μW

Physical characteristics

  • Aperture diameter

    5 mm

  • Absorber

    Ge

  • Dimensions

    38.1Ø x 27.4D mm

  • Weight

    0.09 kg

  • Distance to sensor face

    10.5 mm
Print specifications

CA$1,984.00*

CONTACT SALES Explore customization possibilities

Measure in the NIR range with a germanium absorber

Germanium photodiode-based energy detector for very low energy measurement that offers a fast response for the NIR wavelengths (800-1650 nm).

Customers enjoy:

  • Wide dynamic range
  • Very low noise
  • Not sensitive to visible light
  • Less sensitive to vibrations than pyroelectric detectors

NIST-TRACEABLE CALIBRATION INCLUDED

Traceable calibration provides the ability to trace the readings of laser output measurements to known international measurement standards determined by the National Institute of Standards and Technology (NIST). This ensures that the measurements taken by the instruments are reliable and accurate.

Benefits include:

  • Make valid comparisons of measurements taken by other instruments inside and outside your organization and over time
  • Comply with regulations or conform to industry standards
  • Avoid costly measurement mistakes in your operations
  • Improve customer confidence in your laser systems
  • Ensure laboratory experiment validity
  • Demonstrate measurement accuracy easily with the calibration certificate we provide


Optional INTEGRA (USB or RS-232) output

When you choose the INTEGRA output option you get an all-in-one measurement instrument that combines both the detector and the meter in one convenient product. Plug the detector in your PC, install our free software and start measuring.

Why choose it?

  • The most cost-efficient solution
  • Same measurement performance as our other solutions
  • No compromise on interface functions and features
  • Compact solution for OEM applications and field servicing
  • Save money on recalibration with an all-in-one instrument
