QE50LP-S-MB-QED-D0

P/N 202186

Pyroelectric detector for laser energy measurement up to 85 J.

    • 50 mm Ø
    • 95 mm Ø (90 mm Ø)
    • 195 mm Ø (185 mm Ø)
    • 7.8 x 7.8 mm
    • 12 x 12 mm (9 x 9 mm)
    • 25 x 25 mm (22 x 22 mm)
    • 50 x 50 mm (47 x 47 mm)
    • 65 x 65 mm (62 x 62 mm)
    • Convection
    • Heatsink
    • Water
    • MB - Standard
    • MT - High Repetition Rate
    • BL - Spectrally flat
    • MB - Standard (tuned for long pulses)
    • MB - Standard (tuned for short pulses)
    • MT - High repetition rate (tuned for short pulses)
    • None
    • QED - High Energy Attenuator
    • Standard
    • INTEGRA (USB)
    • INTEGRA (RS-232)
    • INTEGRA (USB with external trigger)
    • BLU (wireless)
QE50LP-S-MB-QED-D0 QE50LP-S-MB-QED-D0 QE50LP-S-MB-QED-D0 QE50LP-S-MB-QED-D0 QE50LP-S-MB-QED-D0 QE50LP-S-MB-QED-D0 QE50LP-S-MB-QED-D0 QE50LP-S-MB-QED-D0 QE50LP-S-MB-QED-D0 QE50LP-S-MB-QED-D0 QE50LP-S-MB-QED-D0 QE50LP-S-MB-QED-D0 QE50LP-S-MB-QED-D0 QE50LP-S-MB-QED-D0 QE50LP-S-MB-QED-D0 QE50LP-S-MB-QED-D0 QE50LP-S-MB-QED-D0 QE50LP-S-MB-QED-D0

Traceable calibration:

Logo nist

Available with

Logo Integra

Product family key features

Modular Concept

Increase the power capability of your detector: 2 different cooling modules

Low Noise Level

10 µJ for the MB coating

QED Attenuator Available

Measure up to 5X higher energies. Available with optional calibration, all wavelengths between 532 & 1064 nm, or single wavelength. Read more.

High Repetition Rate Options

  • QE-MB: 200 Hz (standard)
  • QE-MB: 500 Hz (upon request)
  • QE-MT: 4 000 Hz (standard)

Test Target Included

With the MB models

Smart Interface

Containing all the calibration data

Compatible stand

Compatible displays & PC interfaces

  • MIRO ALTITUDE MIRO ALTITUDE

    Touchscreen display device for power & energy measurement. Single-channel.

  • MAESTRO MAESTRO

    Touchscreen display device for power & energy measurement. Single-channel, multiple outputs (USB, Ethernet, analog).

  • U-LINK (USB) U-LINK (USB)

    PC interface for power & energy measurement. Single-channel, USB output.

  • U-LINK (RS-232) U-LINK (RS-232)

    PC interface for power & energy measurement. Single-channel, RS-232 output.

  • INTEGRA INTEGRA

    Embedded PC interface for power & energy measurement. Can only be purchased as a detector output option.

  • S-LINK-1 (Ethernet) S-LINK-1 (Ethernet)

    PC interface for power & energy measurement. Single-channel, USB & Ethernet output.

  • S-LINK-2 (Ethernet) S-LINK-2 (Ethernet)

    PC interface for power & energy measurement. Dual-channel, USB & Ethernet output.

  • M-LINK M-LINK

    PC interface for power & energy measurement. Single-channel, USB output.

  • S-LINK-1 S-LINK-1

    PC interface for power & energy measurement. Single-channel, USB output.

  • S-LINK-2 S-LINK-2

    PC interface for power & energy measurement. Dual-channel, USB output.

Included

  • Calibration Calibration

    Calibration certificate

  • PWC PWC

    Personal wavelength correctionTM Certificate

  • COVER

    Protective cover for optical surfaces

  • TEST-TARGET

    A target with the same optical absorber as your QE-MB detector.

Measurement capabilities

  • Spectral range1

    0.3 - 2.1 μm

  • Typical rise time

    900 µs

  • Repeatability

    <0.5%

  • Maximum repetition frequency

    200 Hz

  • Maximum measurable energy2

    85 J

  • Noise equivalent energy3

    20 μJ

  • Maximum pulse width

    675 μs

  • Energy calibration uncertainty

    ±3 %
    • 1. For the calibrated spectral range, see the user manual.
    • 2. At 1064 nm, 7 ns, 10 Hz. Increasing pulse width increases maximum measurable energy.
    • 3. Nominal value. Actual value depends on electrical noise in the measurement system.

Damage thresholds

  • Maximum average power density1

    600 W/cm²

  • Maximum energy density2

    8 J/cm²

  • Maximum power

    25 W
    • 1. May vary with wavelength and average power.
    • 2. At 1064 nm, 7 ns, 10 Hz. May vary with wavelength and pulse width.

Physical characteristics

  • Cooling

    Convection

  • Aperture width

    47 mm

  • Aperture height

    47 mm

  • Absorber

    QED

  • Dimensions

    78H x 80W x 20D mm

  • Weight

    0.21 kg
Print specifications

CA$2,447.00*

CONTACT SALES Explore customization possibilities

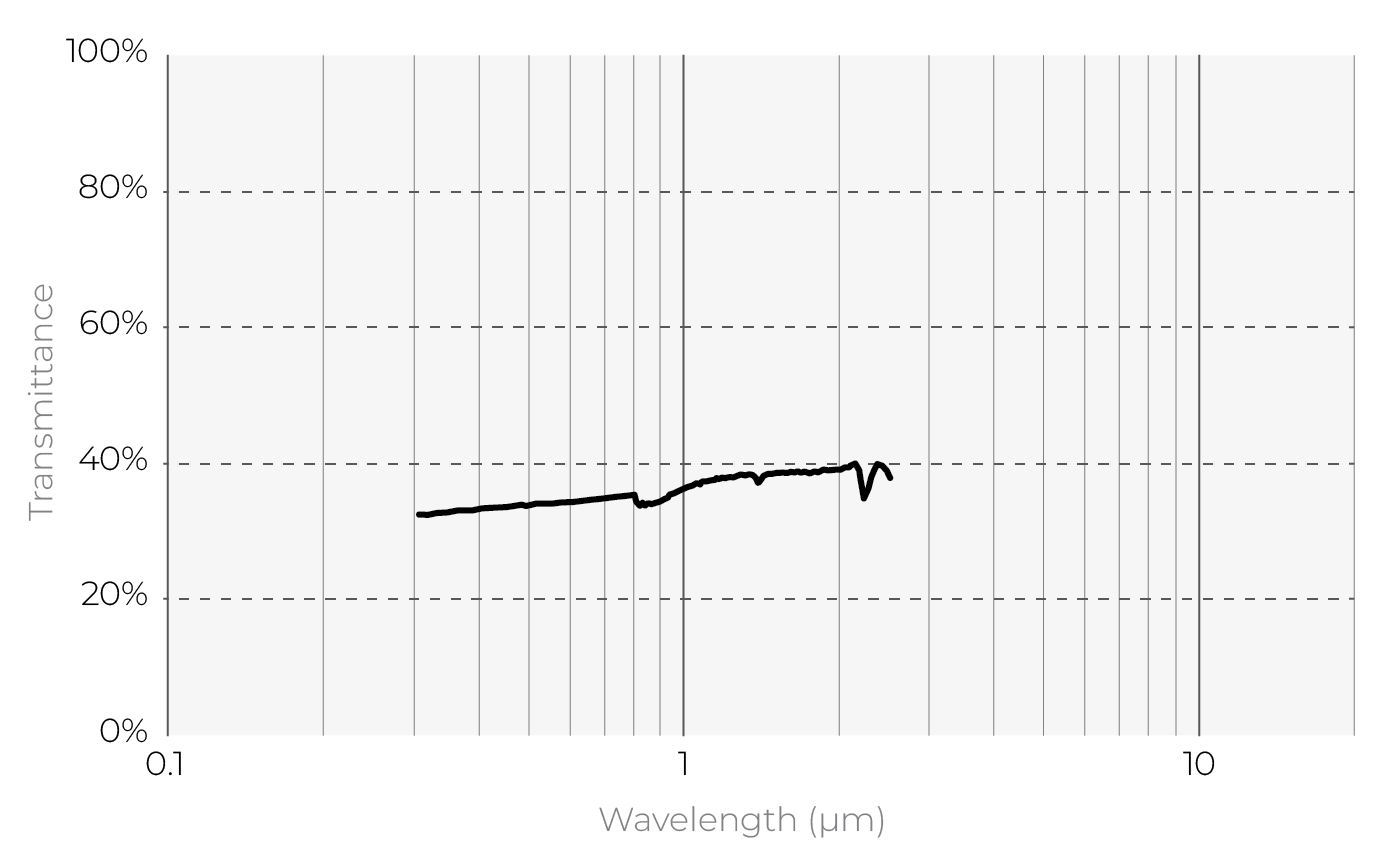

The highest damage thresholds on the market with the QED absorber

Detectors with the QED attenuator are designed for lasers with very high energy density. Our proprietary QED attenuator diffuses the measured beam and absorbs it in a larger volume, making it almost indestructible.

Customers enjoy:

  • The highest maximum energy density damage threshold
  • Very low risk of damaging the equipment with your laser
  • Perfect for pulsed beams with high energy density

NIST-TRACEABLE CALIBRATION INCLUDED

Traceable calibration provides the ability to trace the readings of laser output measurements to known international measurement standards determined by the National Institute of Standards and Technology (NIST). This ensures that the measurements taken by the instruments are reliable and accurate.

Benefits include:

  • Make valid comparisons of measurements taken by other instruments inside and outside your organization and over time
  • Comply with regulations or conform to industry standards
  • Avoid costly measurement mistakes in your operations
  • Improve customer confidence in your laser systems
  • Ensure laboratory experiment validity
  • Demonstrate measurement accuracy easily with the calibration certificate we provide


Optional INTEGRA (USB or RS-232) output

When you choose the INTEGRA output option you get an all-in-one measurement instrument that combines both the detector and the meter in one convenient product. Plug the detector in your PC, install our free software and start measuring.

Why choose it?

  • The most cost-efficient solution
  • Same measurement performance as our other solutions
  • No compromise on interface functions and features
  • Compact solution for OEM applications and field servicing
  • Save money on recalibration with an all-in-one instrument
